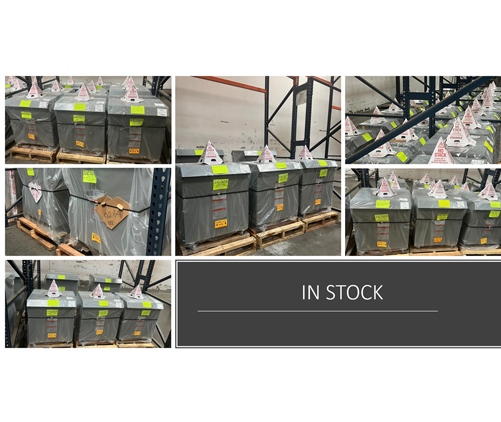

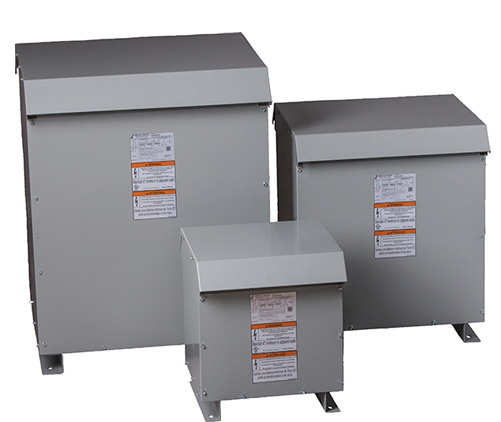

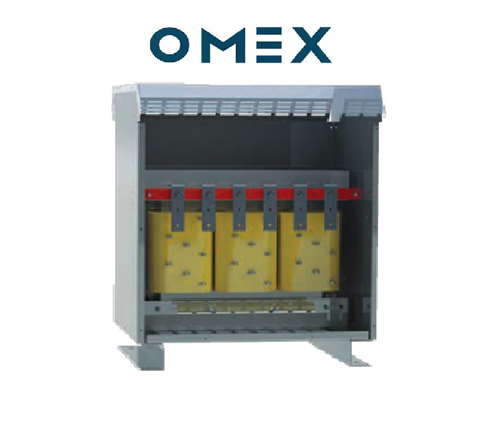

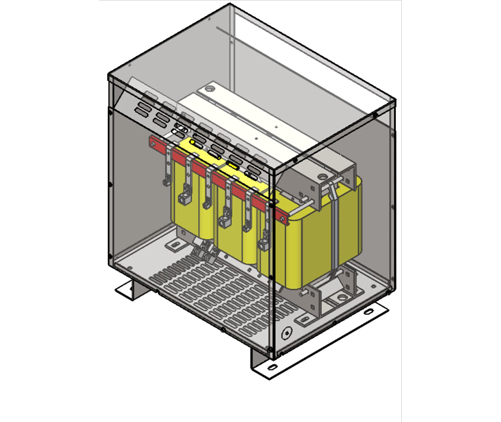

OMEX general purpose low voltage transformers are strategically located across the USA. Standard features for stocked units include:
THREE PHASE | ||||||
480V DELTA PRIMARY - 208Y/120, 60 Hz, 150°C, ALUMINIUM, INDOOR/OUTDOOR | ||||||
KVA | Catalog# | H (in) | W (in) | D (in) | Weight (lbs) | Wall Bracket |
---|---|---|---|---|---|---|
15 | 823-9164-015 | 29 | 21 | 18 | 251 | 223-7008-030 |
30 | 823-9194-030 | 34 | 27 | 21 | 312 | 223-7008-075 |
45 | 823-9214-045 | 34 | 27 | 21 | 378 | 223-7008-075 |
75 | 823-9234-075 | 40 | 29 | 24 | 539 | 223-7008-075 |
112.5 | 823-9254-112 | 41 | 31 | 25 | 719 | n/a |
150 | 823-9264-150 | 41 | 37 | 25 | 922 | n/a |
225 | 823-9294-225 | 53 | 41 | 33 | 1540 | n/a |
300 | 823-9314-300 | 53 | 41 | 33 | 1877 | n/a |
500 | 823-9344-500 | 68 | 50 | 37 | 2739 | n/a |
750 | 823-9364-750 | 70 | 54 | 39 | 3350 | n/a |
THREE PHASE | ||||||
480V DELTA PRIMARY - 240D/120CT, 60 Hz, 150°C, ALUMINIUM, INDOOR/OUTDOOR | ||||||
KVA | Catalog# | H (in) | W (in) | D (in) | Weight (lbs) | Wall Bracket |
---|---|---|---|---|---|---|
15 | 823-9167-015 | 29 | 21 | 18 | 251 | 223-7008-030 |
30 | 823-9197-030 | 34 | 27 | 21 | 312 | 223-7008-075 |
45 | 823-9217-045 | 34 | 27 | 21 | 378 | 223-7008-075 |
75 | 823-9237-075 | 40 | 29 | 24 | 539 | 223-7008-075 |
112.5 | 823-9257-112 | 41 | 31 | 25 | 719 | n/a |
150 | 823-9267-150 | 41 | 37 | 25 | 922 | n/a |
225 | 823-9297-225 | 53 | 41 | 33 | 1540 | n/a |
300 | 823-9317-300 | 53 | 41 | 33 | 1877 | n/a |
500 | 823-9347-500 | 68 | 50 | 37 | 2739 | n/a |
750 | 823-9367-750 | 70 | 54 | 39 | 3350 | n/a |
THREE PHASE | ||||||
240V DELTA PRIMARY - 208Y/120, 60 Hz, 150°C, ALUMINIUM, INDOOR/OUTDOOR | ||||||
KVA | Catalog# | H (in) | W (in) | D (in) | Weight (lbs) | Wall Bracket |
---|---|---|---|---|---|---|
15 | 823-9161-015 | 29 | 21 | 18 | 251 | 223-7008-030 |
30 | 823-9191-030 | 34 | 27 | 21 | 312 | 223-7008-075 |
45 | 823-9221-045 | 34 | 27 | 21 | 378 | 223-7008-075 |
75 | 823-9251-075 | 40 | 29 | 24 | 539 | 223-7008-075 |
112.5 | 823-9281-112 | 41 | 31 | 25 | 719 | n/a |
150 | 823-9311-150 | 41 | 37 | 25 | 922 | n/a |
SINGLE PHASE | ||||||
240Vx480V - 120/240, 60 Hz, 150°C, ALUMINIUM, INDOOR/OUTDOOR | ||||||
KVA | Catalog# | H (in) | W (in) | D (in) | Weight (lbs) | Wall Bracket |
---|---|---|---|---|---|---|
15 | 721-9175-015 | 27 | 15 | 21 | 190 | 223-7008-075 |
25 | 721-9185-025 | 29 | 17 | 23 | 265 | 223-7008-075 |
37.5 | 721-9205-037 | 31 | 20 | 24 | 330 | 223-7008-075 |
50 | 721-9225-050 | 32 | 22 | 26 | 465 | n/a |
75 | 721-9235-075 | 34 | 22 | 28 | 555 | n/a |
100 | 721-9245-100 | 36 | 22 | 30 | 690 | n/a |
THREE PHASE | ||||||
208V DELTA PRIMARY - 120/208, 60 Hz, 150°C, ALUMINIUM, INDOOR/OUTDOOR | ||||||
KVA | Catalog# | H (in) | W (in) | D (in) | Weight (lbs) | Wall Bracket |
---|---|---|---|---|---|---|
15 | 823-9166-015 | 29 | 21 | 18 | 251 | 223-7008-030 |
30 | 823-9196-030 | 34 | 27 | 21 | 312 | 223-7008-075 |
45 | 823-9226-045 | 34 | 27 | 21 | 378 | 223-7008-075 |
75 | 823-9256-075 | 40 | 29 | 24 | 539 | 223-7008-075 |
112.5 | 823-9286-112 | 41 | 31 | 25 | 719 | n/a |
150 | 823-9316-150 | 41 | 37 | 25 | 922 | n/a |
225 | 823-9346-225 | 53 | 41 | 33 | 1540 | n/a |
300 | 823-9376-300 | 53 | 41 | 33 | 1877 | n/a |
500 | 823-9406-500 | 68 | 50 | 37 | 2739 | n/a |
THREE PHASE | ||||||
480V DELTA PRIMARY - 480Y/277, 60 Hz, 150°C, ALUMINIUM, INDOOR/OUTDOOR | ||||||
KVA | Catalog# | H (in) | W (in) | D (in) | Weight (lbs) | Wall Bracket |
---|---|---|---|---|---|---|
15 | 823-9362-015 | 29 | 21 | 18 | 251 | 223-7008-030 |
30 | 823-9392-030 | 34 | 27 | 21 | 312 | 223-7008-075 |
45 | 823-9422-045 | 34 | 27 | 21 | 378 | 223-7008-075 |
75 | 823-9452-075 | 40 | 29 | 24 | 539 | 223-7008-075 |
112.5 | 823-9482-112 | 41 | 31 | 25 | 719 | n/a |
150 | 823-9512-150 | 41 | 37 | 25 | 922 | n/a |
225 | 823-9542-225 | 53 | 41 | 33 | 1540 | n/a |
300 | 823-9572-300 | 53 | 41 | 33 | 1877 | n/a |
500 | 823-9602-500 | 68 | 50 | 37 | 2739 | n/a |
THREE PHASE | ||||||
208V DELTA PRIMARY - 480Y/277, 60 Hz, 150°C, ALUMINIUM, INDOOR/OUTDOOR | ||||||
KVA | Catalog# | H (in) | W (in) | D (in) | Weight (lbs) | Wall Bracket |
---|---|---|---|---|---|---|
15 | 823-9163-015 | 29 | 21 | 18 | 251 | 223-7008-030 |
30 | 823-9193-030 | 34 | 27 | 21 | 312 | 223-7008-075 |
45 | 823-9223-045 | 34 | 27 | 21 | 378 | 223-7008-075 |
75 | 823-9253-075 | 40 | 29 | 24 | 539 | 223-7008-075 |
112.5 | 823-9283-112 | 41 | 31 | 25 | 719 | n/a |
150 | 823-9313-150 | 41 | 37 | 25 | 922 | n/a |
225 | 823-9343-225 | 53 | 41 | 33 | 1540 | n/a |
300 | 823-9373-300 | 53 | 41 | 33 | 1877 | n/a |
500 | 823-9403-500 | 68 | 50 | 37 | 2739 | n/a |
